China manufacturer high resolution 640x480mm led panel p4 p3 p2.5 p2 indoor led display screen
Stage Led Screen Features
1. Our LED display can play various compatible video file formats, as long as the file can be played on your computer, such as AVI, MOV, MPG, DAT, VOB. 2. The LED display has optional data interfaces, depending on customer requirements, such as DVI, VGA, RGB, Pr Pb HDMI, etc. 3. Our LED display is connected to the PC and can synchronously display various words, texts, graphics, pictures, Flash, existing videos, real-time videos, 2D animations and 3D animations supported by your personal computer. 4. Our LED display has free control system software, which can be updated online and supports 12 languages, including English, French, Spanish, Polish, Italian, Portuguese, Russian and Korean. 5. Lightweight LED cabinet, easy to assemble and disassemble
Stage Led Screen Specification
| indoor SMD P3 |
| Lamp size | 2020 |
| Resolution/mm | 3 |
| Pixel configuration | RGB 3 in 1 |
| Pixel density/pixels/m² | 111111/m² |
| Module resolution | 64x64 |
| Module size/mm | 192x192 |
| View distance | ≥3m |
| Single point brightness adjust | Can be added |
| Single point color adjust | Can be added |
| White balance brightness | >1200cd/㎡ |
| Color temperature | 6500K-9500K |
| Horizontal view angle | 120(degrees) |
| Vertical view angle | 120(degrees) |
| Signal Process bit | 10 or 14 bit |
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 |
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:5km |
| Driving mode | Constant driving current |
| Scanning mode | 1/16 |
| Frame rate | 60Hz |
| Refresh frequency | >1200Hz |
| Control mode | Computer synchronous |
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
| Out of control point | <1/10000 |
| Working hours | ≥72hours |
| Mean Time Between Failure | >5000hours |
| Life time | 100000hours |
| Life-all-white(brightness halving) | 50000hours |
| Environment temperature range | Operating temperature range: -20-45℃ Storing temperature range: -30-65℃ |
| Maximum power:/㎡ | <1100W |
| Average power:/㎡ | <280W |
| Self-check technology | LED spot self-check, communications check, power check, temperature monitor(need customization) |
| Remote monitoring | Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) |
| Software environment | WindowsNT,Windows1999,WindowsXP |
| Luminous point width between centres | Deviation<3% |
| Brightness uniformity | <10% |
| Color uniformity (chromaticity coordinate) | ±0.003 |
| Power supply request | AC85-264V(50Hz-60Hz) |
| Contrast | (1000:1) |
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration |
| Humidity(working) | working:10-95% |
| Humidity(storing) | storing:10-95% |
Stage Led Screen Production Process
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing

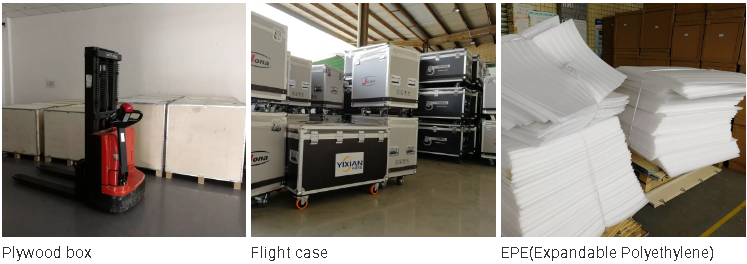

Stage Led Screen Shipping and Package
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
FAQ
What kind of payment terms you can accept ?
We can accept T/T and Western Union.
What about your Led Display quality ?
Checking in the whole manufacturing process&100% inspection before shipment ensure the
quality of our products continuity.
What is your delivery time ?
Within 7-35 days according to your area and quantity.
Is your LED display competitive ?
Yes,we are led display manufacturer for more than 10 years.Mass and professional production
ensure our led display’s competitiveness.
