P2.5 aluminum cabinet Indoor Full Color LED Video Display for Conference room
Quick Detail:
1, High resolution at 160000pixels/㎡;
2, LED Chips: Epistar high brightness;
3, High brightness up to 7000cd/㎡;
4, Power Supply: Meanwell;G-erngy ,chuanglian LED driver
5, Control System: Linsn,Nova etc.
Description:
1. P2.5 SMD LED display has high resolution and is suitable for indoor LED screens;
2. Both horizontal and vertical viewing angles are 140 degrees;
3. P2.5 is increasingly used for electronic digital signage because the trend of LED screens is high resolution.
4. Advertising images and videos are clear and realistic;
5. High contrast ratio of 1000:1, presenting a real and natural color LED screen;
Applications:
Airport Full Color Indoor LED displays advertising
Train station Indoor Full Color LED Displays
Entertainment Bar Indoor Full Color LED Screen

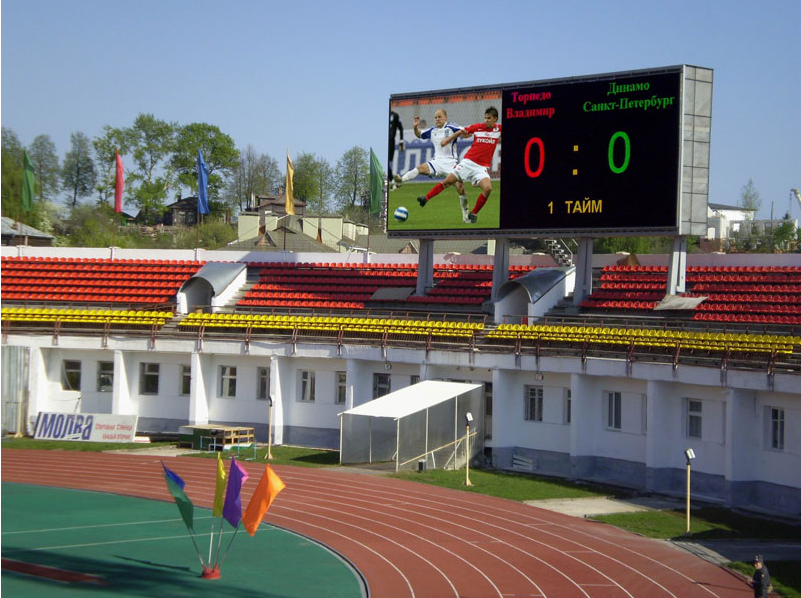

Stadium Indoor Full Color LED Display
Museum Full Color Indoor LED display
Car exhibition LED display
Conference room Indoor Full Color LED Video Display
Shopping Mall Indoor Full Color LED display
Specifications :
| outdoor DIP P2.5 |
| Resolution/mm | 2.5 |
| Pixel configuration | 1R1G1B |
| Pixel density/pixels/m² | 160000/m² |
| Module resolution | 64x64 |
| Module size/mm | 160x160mm |
| View distance | 14-300m |
| Single point brightness adjust | Can be added |
| Single point color adjust | Can be added |
| White balance brightness | >7500cd/㎡ |
| Color temperature | 6500K-9500K |
| Horizontal view angle | 120(degrees) |
| Vertical view angle | 60(degrees) |
| Signal Process bit | 10 or 16bit |
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 |
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km |
| Driving mode | Constant driving current |
| Scanning mode | 1/30 SCANNING |
| Frame rate | 60Hz |
| Refresh frequency | >3000Hz |
| Control mode | Computer synchronous |
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted |
| 255 steps. No grey loss |
| Out of control point | <1/10000 |
| Working hours | ≥72hours |
| Mean Time Between Failure | >5000hours |
| Life time | 100000hours |
| Life-all-white(brightness halving) | 50000hours |
| Environment temperature range | Operating temperature range: -20-45℃ |
| Self-check technology | LED spot self-check, communications check, power check, |
| temperature monitor(need customization) |
| Remote monitoring | Remote supervision and control, record potential fault, |
| send out warning signs to the operators.(need customization) |
| Software environment | WindowsNT,Windows1999,WindowsXP |
| Luminous point width between centres | Deviation<3% |
| Brightness uniformity | <10% |
| Color uniformity(chromaticity coordinate) | ±0.003 |
| Power supply request | AC85-264V(50Hz-60Hz) |
| Contrast | (1000:1) |
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration |
| Humidity(working) | working:10-95% |
| Humidity(storing) | storing:10-95% |
Competitive advantages:
1. The P2.5 indoor full-color LED display has uniform brightness and color;
2. The full-color P2.5 LED screen uses all-black LED chips;
3. The indoor full-color LED display has a contrast ratio of up to 1000:1, which truly restores the content color;
4. It uses Sum driver IC, with high refresh rate and high grayscale;
5. Both horizontal and vertical viewing angles are 140 degrees;
6. The P2.5 LED display has high resolution and is suitable for indoor rental activities that require high-quality demonstrations. The cost of large-size indoor LED screens is low;
♦ Production process
1) Incoming Inspection→2)DIP→3)Plug-in
→4) Wave Soldering→5)After Welding→6)Testing
→7) Semi Finished Aging→8)Module Assembly
→9) Gluing→10)Finished Aging→11)Detection Finishing Warehousing
♦ Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
♦ Why choose us
Continues Quality
With more than 10 years experience in led display producing,equipments are updated regularly.What’s
more,unique standardized and module production ensure our products continuous quality.
Competitive Price
With large scale production capacity and professional production technology,our company have built
effective modular production.We always stick to promote the technical innovation and reduce cost to
benefit customers.
Fast Delivery
Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the products.
Perfect Service
Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to
you.
After-sales:We will track the products usage and then constantly perfect our products.
♦ Frequently Asked Questions
Q1: How can I select your product?
Firstly you need to tell us your requirement such as the viewing distance, size, installation height, and some other details for the LED screen that you want. And then we will give you a recommendation.
Q2:What if I don't know how to install the screen?
1. We will provide your details drawing for installation led screen, But you need provide us on-site picture for installation
place, and we can guide on line.
2. Training 2 people in the factory.
3. We can send our engineers to your country to guide how to install the screen.
Q3:What is the minimum order quantity?
Qty: 1 unit. Different order quantity different price.
Q4:I would like to ask you if it's possible to have my logo on the product.
Logo printing service is available for mass order based on our M.O.Q
Q5:What if I don't know how to maintain the screen?
We will provide you the operation manual, software when you place the order and also we can remote to help you to adjust the software by teamviwer.
Q6: How to deliver the my goods?
It denpens on your budget and time you need the led screen. Regularly, if the quantity is less, we guggest to deliver by air, otherwise by sea to save the costs.
Q7: How about your warranty?
We provide 3 year warranty for all of our products and supply life-time maintenance.
Q8: What kind of packaging do you provide?
We provide flight case, wooden case and carton.
Q9: How long will it take me to get the product?
We will send the goods as quick as possible, but oftenly it will take 1-2 weeks to get the goods according to the distance ,and some other necessary processes.
Q9: What kind of certification do you get?
We have ISO9001 Quality Control certification. Also CE/ROHS/FCC/CCC etc for different countries’ market.
Product Tags:
|
|
Die-Casting Aluminum Screen Fixed Installation/Rental Customizable Conference Room Ultra HD P2.5 Small Pitch Indoor Full Color LED Display Images
|
