SCX LED outdoor waterproof P6 SMD3528 Led display fixed installation led advertising wall
1) Support all kinds of videos, graphics, pictures, files, text, and etc.
2) Engergy-saving. Using high brightness LEDs with low power consumption.
3) Reliability-- Support 24/7 working without any faulty.
4) Intelligent control-- Support synchronization, asynchronization, wireless control(3G, WIFI), or Cluster control.
5) Modular design for easy installation and maintenance
6) Brightness can be adjustable
7) Wide viewing angle and longer viewing distance for more audiences.
Product Description:
(1)Multiplied file formats, such as AVI, MOV, MPG, DAT, VOB are comprehensive, and also we have three display mode as VGA+VIDE and VGA. There are also interfaces for Sound signal and video signal.
(2) 4096 grade grey control system and the color is over 16.7 millions, and the brightness, contrast, saturation, chroma can be adjusted by manual and sensor, whose scope is 256 grade.
(3) Show all kinds of word, text, graph, picture, video, 2-dimention, 3-dimention cartoon and other information with your PC does synchronously.
(4) Line-Double technology is adopted for the picture adjustment.
(5) Can be connected with PC and the web net and show the content, and also can be controlled remotely via VPM+ADSL.
(6) Can be used outdoor in all kinds of weather, and excellent capability of antisepsis, waterproof.
| | Para Name | Parameter |
| | Module No: | HXQC-OF6R |
| Pixel pitch | 6mm |
| Module size | 192mm x 192mm |
| Module resolution | 32 x 32 |
| Pixel density | 27,777 pixels/square meter |
| LED package | SMD |
| Module wieght | 0.26kg |
| | cabinet size | 960mm x 960mm /Customized Size |
| Cabinet depth | 150mm |
| cabinet resolution | 160 x 160 |
| Cabinet weight | 38kgs |
| | Brightness | 6,000nits |
| Scan mode | 1/8 Scaning |
| Refresh rate | over 1,920hz |
| Power consumption | Max: 760 W/Sqm; Average: 300 W/Sqm |
| Ingress Protection | IP65 |
| System Operation Platform | WINDOWS(WINXP/7/8/10) |
Application:
1,Stage led screen: easy to hanging install and fast assembly for the background video panel ,suitable to stage setting .
2,Conference & Board Rooms led screen : install in Conference & Board Rooms for meeting or stage background.
3.Stadiums & Gymnasiums led screen : install in the Stadiums & Gymnasiums to live sports event, as video wall panel
4.Meeting room & Auditoriums led screen : install with a portable section aluminum structure ,as a mobile led screen .
5.Banquet led screen: install in the banquet hall for music video or events video panel as setting.
6.Airport led screen : install in airport for festival advertisement or special video display .

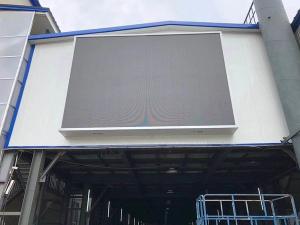

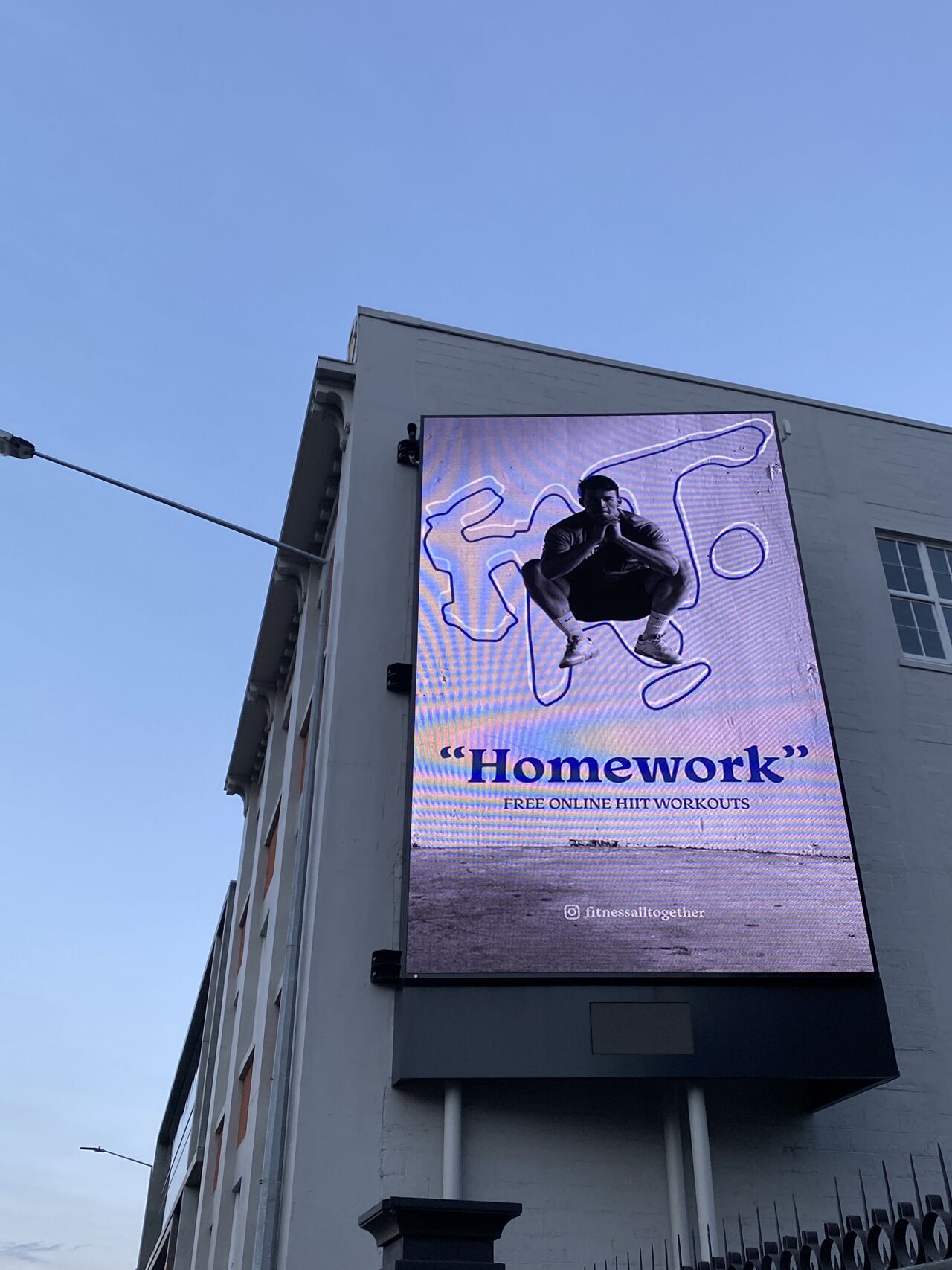

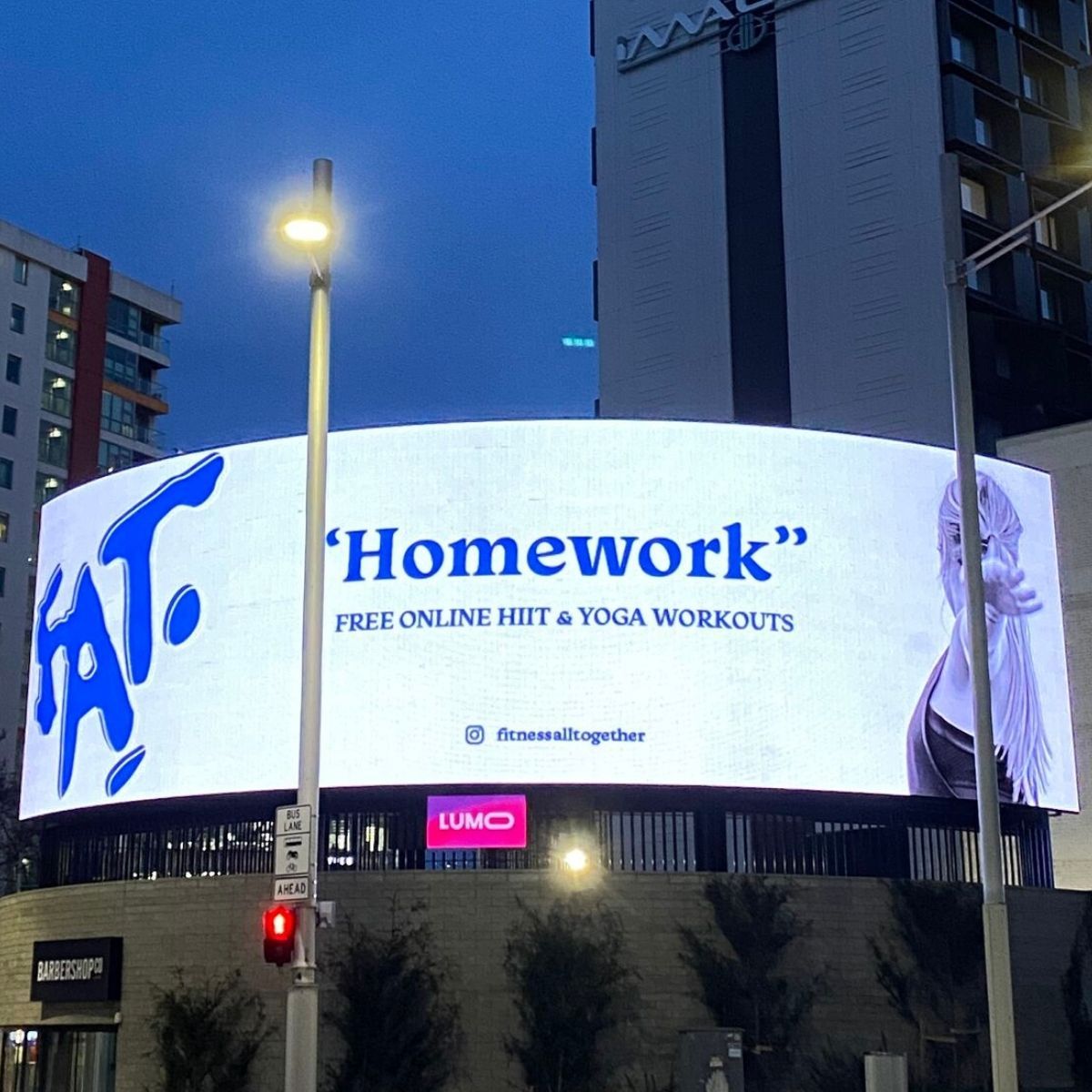

Our case
Packing & Delivery
Packing: Carton box, wooden case, Flight case.
Delivery:Shipping your goods after 15 working days
Our Services
1. 100% brand new
2. Payment: Bank transfer or Western Union and etc.
3. Reply your inquiry in 24 working hours.
4. Customized design is available, OEM acceptable.
5. Exclusive and unique solution can be provided.
6. Special discount and protection of sales area provided to our distributor.
7. Welcome your visit to our factory and company offices.
FAQ
1. who are we?
We are based in Guangdong, China, start from 2012,sell to Domestic Market(40.00%),North America(35.00%),Southeast Asia(10.00%),Eastern Europe(3.00%),Southern Europe(3.00%),Northern Europe(3.00%),Western Europe(3.00%),Africa(3.00%). There are total about 201-300 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Indoor LED Display,Outdoor LED Display,LED Module,Rental LED Display,SMD led display
4. why should you buy from us not from other suppliers?
.Our factory manufacture LED screen more than ten years, we have a good technical team and specialized worker. Our products main sell to Europe and America.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C, Credit Card,PayPal,Western Union,Cash,
Language Spoken:English
